Microservices in Compose with Nginx

A guide on how you can support your microservices architecture on Uffizzi Compose environments through Nginx

By Shruti Chaturvedi (opens in a new tab)

Nginx with Uffizzi: What problems can it solve?

Uffizzi, being cloud-native, allows you to bring your microservices architecture into ephemeral environments. The services directive is used to start each of the microservices defined in the docker-compose.uffizzi.yml file in its own container. This allows you to develop and manage the microservices as containers, independently of each other, in your ephemeral environments independently of each other.

The next component of the microservices architecture is networking. How you configure networking for your ephemeral environments depends on your application architecture. If you have multiple independent client-side and server-side services talking through HTTP/S, for example, an Angular frontend talking to Node backend, networking between these services can be achieved using Nginx as a reverse proxy. Some other cases where we’ve used Nginx to help projects onboard to ephemeral environments are:

More than one microservice exposed publicly: if your application has multiple public-facing services, you’ll need to put them behind Nginx (or an alternate reverse proxy such as Traefik). The reverse proxy will receive your traffic, and route requests for different services accordingly. Currently, Uffizzi does not support adding multiple "ingresses" (multiple entry ports) into your application. For example, if you have one service named personal-account, exposed publicly on port 3000, and another service named team-account, exposed publicly on port 3001, natively (without Nginx), you can expose either 3000 or 3001 on your ephemeral environment to receive external requests using the ingress field in your compose file. With Nginx added, you can put both services behind Nginx, expose Nginx to receive HTTP/S traffic, and forward requests coming to Nginx to your services.
More than one port needs to be accessed publicly (primarily applicable for monoliths): if a service has more than one exposed port that needs to be accessed publicly, adding Nginx as a reverse proxy will help you achieve this elegantly.

Example Application

Let’s take a look at an example of configuring a microservices application with Nginx. This example is a simple voting app, where users can cast a vote for dogs or cats and see the results of the polling in real-time. You can follow the example on GitHub (opens in a new tab). The application has 5 different microservices:

voting-app service: client-side service in Python, that allows you to cast a vote. Writes to our Redis queue
redis service - Redis queue to collect new votes
worker service - .NET Core worker service to consume votes from the Redis queue and write to Postgres
db service - Postgres DB, backed by a Docker volume, to write and read the votes
result-app service - Node.js web app that reads data from the db service and displays the results in real-time.

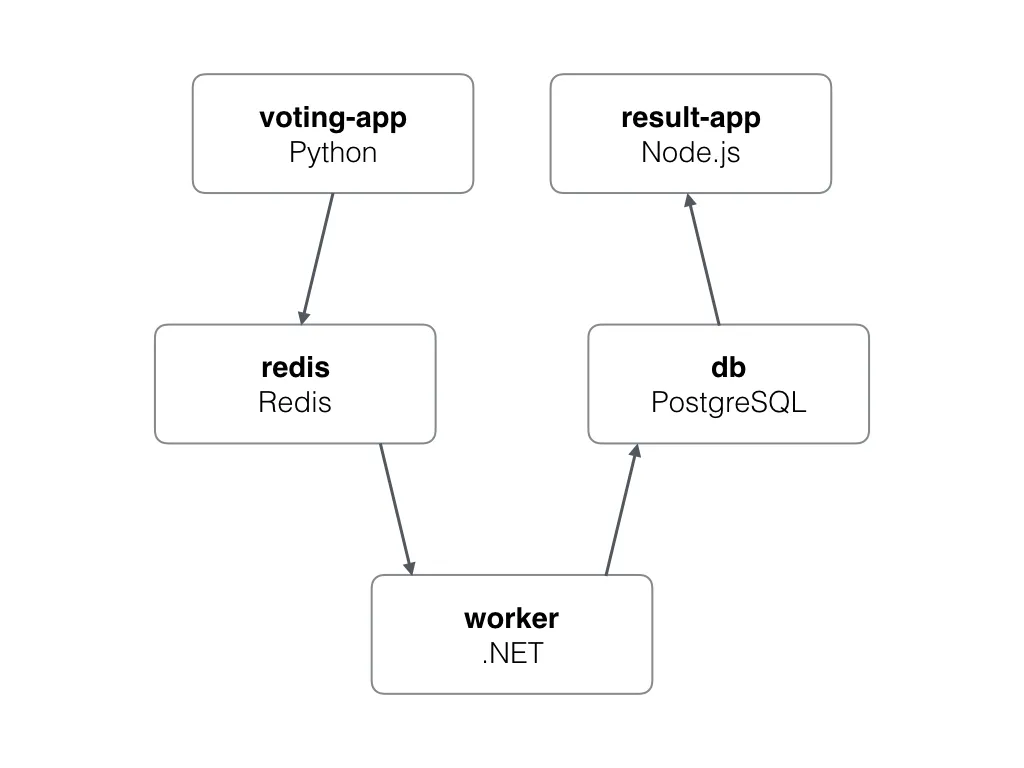

Voting application microservices architecture

In this example, we have two services exposed publicly: the voting-app service, which receives votes, and the result-app service, which displays the results back to the user. As mentioned before, currently, Uffizzi supports defining a single service in your ephemeral environment to receive external requests. However, adding Nginx into the environment will solve the problem.

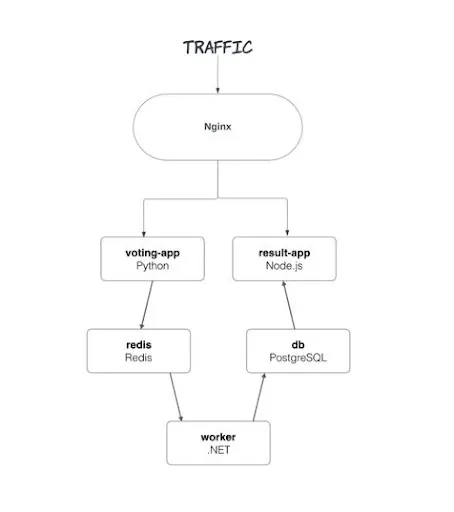

We will define Nginx as the ingress into the ephemeral environments to listen to incoming HTTP/S connections and route the request to one of the two exposed services based on the path requested.

To define an ingress, we need a port (the environment will be listening for traffic on this port) and a service (the requests coming to the port will be forwarded to this service). In our case, we will first create an nginx service in the compose file, and use this service as our ingress.

Step 1: Creating an Nginx container

Within your docker-compose.uffizzi.yml file, add a new service (within the services directive), we’ll name it nginx. Our nginx service will use the official Nginx image from Docker Hub (opens in a new tab). If you want, you can also build a custom image based on Nginx’s official image. If you’re following the example on GitHub, please know that we have used a custom image for the nginx service (named loadbalancer) built on the official Nginx image.

  nginx:
    image: nginx:alpine
    deploy:
      resources:
        limits:
          memory: 125M

Step 2: Creating Nginx configuration file

Once you have the above service added, we will now configure routing rules for Nginx to forward requests to the voting-app service and result-app service.

We will create a new configuration file called nginx.conf and define how Nginx should handle request routing. Please make sure this file is placed under a directory, and the total size of the directory is smaller than 1 MB compressed. If you’re having trouble configuring volumes, read our troubleshooting guide.

There are 2 ways traffic will come into the example app:

Users interact with the voting-app service to cast their votes
Users interact with the result-app to see results

We will, therefore, need to route requests from the nginx service to these two services. Our requirements for the nginx (ingress) service are:

Requests to the root of our app should take users to the result-app service, where they can see the votes that have been cast so far.
The result-app service should redirect users to the vote-app service, where they can cast their votes.
The vote-app service must respond to the redirect from result-app and allow users to cast their votes.

Here is the nginx.conf file:

server {
    listen       8080;
    server_name  localhost;
    location / {
        proxy_pass      http://localhost:8088/; # result-app addr
    }
    location /vote/ {
        proxy_pass      http://localhost:8888/; # voting-app addr
    }
}

In the above nginx.conf file, we have defined Nginx to listen on port 8080. The port you define here should not be in use by other services/containers. Requests received at the root (defined by /) will be sent from Nginx to the result-app service. Requests received at /vote will be sent to the vote-app service. This config file will allow the nginx container—when configured as ingress in the docker-compose.uffizzi.yml—to receive HTTPS traffic and forward HTTP to the defined upstream.

Step 3: Configuring the Nginx container

We’ll now further configure the Nginx container to mount this config file into the container. Make the following changes to the nginx service:

 nginx:
   image: nginx:alpine
   environment:
     VOTE_HOST: "localhost"
     VOTE_PORT: "8888"
     RESULT_HOST: "localhost"
     RESULT_PORT: "8088"
   volumes: ./nginx-uffizzi:/etc/nginx
   deploy:
     resources:
       limits:
         memory: 125M

Take note of the volumes section. Currently, Uffizzi does not support mounting single files from the host to the container. We, therefore, placed the nginx.conf file into a directory called nginx-uffizzi and mount this directory to /etc/nginx in the container.

According to the official docs from Nginx, for NGINX Open Source, where the config needs to be mounted will depend on the package system used to install NGINX and the operating system. It is typically one of /usr/local/nginx/conf, /etc/nginx, or /usr/local/etc/nginx. The nginx.conf is a highly configurable file that you can configure according to the needs of your app. However, instead of replacing the default nginx.conf altogether, we often recommend adding your configuration file(s) in the /etc/nginx/conf.d/ directory, which Nginx will apply as additional configuration to the default nginx.conf. See Nginx documentation (opens in a new tab) for details on how multiple configurations are applied.

Step 4: Adding nginx container as our entrypoint/ingress into the ephemeral environment

After fully configuring the nginx container, let’s add this as the ingress to receive traffic into Uffizzi ephemeral environments. At the top-level of your compose file, add the following:

x-uffizzi:
 ingress:
   service: nginx
   port: 8080

Your compose should look like this after adding the above snippet:

x-uffizzi:
 ingress:
   service: nginx
   port: 8080
services:
 nginx:
   image: nginx:alpine
   volumes: ./nginx-uffizzi:/etc/nginx
   deploy:
     resources:
       limits:
         memory: 125M
 other-services:
   image: service-image

Voila! After making these changes, and opening a PR in your project, a new environment will spin up, receiving HTTPS traffic on the port you have defined (here 8080). Adding a reverse proxy as ingress for your ephemeral environments is a really powerful way of bringing your microservices application to Uffizzi. Scenarios we discussed above, and more, can efficiently be solved by adding Nginx into your Uffizzi ephemeral environments. For more blogs on enhancing developer productivity with ephemeral environments, check out our blog (opens in a new tab). If you want ephemeral environments for your microservices, get in touch with us (opens in a new tab) and let us know how we can help!
